Frequency Converter | Shore Power

The recent pandemic affected all industry sectors worldwide, and the international maritime trade was no exception. However, shipping by sea still accounts for over 90% of the transportation of all goods globally and will continue to be the primary method of transportation for the foreseeable future. Projections for the global shipping container market alone in 2027 are $12 billion.

However, as industries begin to recover, the problem of harmful emissions while cargo, container, cruise, and other sea-faring vessels are at dock remains a serious concern. While at berth, ships typically use auxiliary diesel-powered engines to generate the power needed to maintain critical levels for ventilation, electrical, refrigeration, communication, and other systems.

Some vessel types, such as container, refrigeration, and cruise ships, require significant power while in port. The resultant polluting emissions are harmful to the environment, a danger to human, animal, and marine life, a source of significant noise pollution, and creates tension with neighboring port communities.

Shore power service stands alone in effectively addressing and satisfying all of these concerns.

What Is Shore Power?

The term “shore power” refers to the power source for the vessel at berth, using local onshore electrical power rather than the ship’s auxiliary diesel engines. Other terms for shore power include cold ironing, Alternative Maritime Power (AMP), and Onshore Power Supply (OPS).

Shore power has been used by the U.S. Navy Shore power over the past 20 years and is included in the Navy’s Incentivized Shipboard Energy Conservation program. Shore power solutions have more recently found their way into the commercial sector, filling a critical need. Using ship to shore power can dramatically reduce overall pollutant emissions by up to 98% when connected to the regional electricity grid while in port.

Why Do We Need Shore Power?

There are many reasons to utilize shore power systems. People, marine life, animals, air and water quality all benefit tremendously from shore power.

  1. Shore power systems present significantly fewer health risks to residents.

According to the EPA, emissions from vessels running auxiliary diesel engines at berth can significantly contribute to air pollution.

These emissions contain particulate matter, nitrogen oxides, ozone, and air toxins contributing to substantial health risks. These health risks include increased respiratory symptoms, cancer risk, premature mortality, and hospital admissions. Children, the elderly, outdoor workers, and other sensitive populations are at the highest risk.

  1. Shore power usage improves relationships between the ports and local communities.

The existing air pollution can be a constant source of friction between the nearby port communities and the port, leading to opposition to port growth. Implementing ship to shore power systems improves the quality of life and health for ship and dock workers, helps preserve clean waters, protects marine life, and benefits the entire coastal community.

  1. Ship to shore service dramatically reduces noise pollution.

Another problem is noise pollution. Auxiliary engines are noisy, and they vibrate. When ships are hooked up to shore power converters, the noise pollution and vibration problem are eliminated.

  1. Ship to shore power solutions extends the life of the engines.

The engine is one of the most expensive parts of any ship, so extending the life of the ship’s engine through ship to shore power systems is extremely valuable. Allowing main or auxiliary engines to rest rather than run continuously while at port reduces wear and tear and increases overall lifespan.

Utilizing shore power also reduces the frequency of care and maintenance required to ensure optimal performance of the engines, saving time, work, materials, and thus money.

  1. Regional and international regulations increasingly require shore power conversions.

Getting ahead of coming regulations makes sense, and there are several financial incentives for switching over to shore power solutions. For example, the Environmental Shipping Index (ESI) rewards ships that voluntarily reduce their emissions, and ports that participate in the ESI offer incentives for ships to use shore power. In addition, cities and agencies offer significant grants for ports and ships to convert to shore power systems.

How Does Ship to Shore Power Work?

The ships are fitted with special power connectors that are connected to an onshore electrical power grid through a substation at the port. This allows cruise ships to maintain optimum comfort levels for passengers that remain on board while others disembark, for refrigeration units to keep their cargo at a safe and consistent temperature, and for cargo-operating machinery to function while loading or unloading.

There are specific technical requirements both shore and shipside, but in basically:

  • On shore, an electrical substation is required to receive power transmitted from the local grid, typically at 34.5 kilovolts (kV). A transformer is also needed to bring the voltage down to the ship’s existing electrical voltage. International shore power standards are in place to make it easier for ports to select the proper equipment.
  • Vessel modifications must also be in place and can be retrofitted with the proper infrastructure to connect to shore power systems. The ship must have a shore power converter and a shore power frequency converter. New ships can include an onboard shore power ready system as part of the ship’s electrical system design.

It is worth noting that while ship to shore power can substantially reduce auxiliary engine emissions at port, shore power does not address emissions from boilers or other vessel sources.

Who Will Benefit from Ship to Shore Power Systems?

Ports, terminals, and several types of ships will benefit from utilizing ship to shore power systems, including:

  • Container Terminals
  • City Ports
  • Single and Multiple Frequency Applications
  • Single and Multiple Berth Configurations

The main types of ships that will benefit from ship to shore power systems include:

Cruise Ships

Cruise ships can connect to a land source of power while at port and shut off their main and auxiliary engines while passengers embark and disembark, keeping the crew and remaining passengers comfortable, as noted earlier. Carnival Cruise Line has partnered with PortMiami with the help of a DERA grant to build their new projects to Miami in 2022. Shore power for cruise ships will continue to grow due to the many benefits and with the future fixed firmly in mind.

Cargo Ships

Nearly all cargo ships use diesel combustion engines to turn the propellers and diesel generators that power onboard lighting systems and communications equipment.

Container Ships

These larger vessels carry their cargo in truck-size containers. Due to their size, more power is required to keep them running while at port.

Ro-Ro Ships

Ro-Ro (or Roll-On/Roll-Off) ships carry wheeled cargo that can drive on and off the ship, vehicles such as cars, buses, railroad cars, trucks, buses, trucks, etc. and semi-trailer trucks.

Reefer Vessels

Reefer (refrigerated) vessels carry cargo that requires a continuous energy source to maintain the necessary temperature to protect their content while docked.

Tankers and LNG (liquified natural gas) carriers would also benefit from shore power service. Assessments suggest that shore power may be most effective when applied at terminals and ports with a high percentage of frequently returning vessels, often cruise and container ships.

Additional Considerations

There are additional considerations when thinking about switching over to shore power service.

For example, many ports do not currently have the appropriate infrastructure to connect to vessels with shore power components, although with increased regulations and powerful incentives, that number is rising.

Ships are constructed using the utility power available at the shipyard in the country of construction. However, due to past governmental decisions, the utility frequency in one country is not the same as the utility frequency in another. Although transformers can be used to match voltage, the frequency change, usually 50 Hz to 60 Hz OR 60 Hz to 50 Hz, can only be done using a piece of equipment known as a frequency converter. The most efficient type is solid state. Essentially this equipment operates on the available in-country utility power and converts that to the utility power required by the ship.

Other factors to assess include the length of time the ship will be connected to the shore power supply, actual energy costs, power consumption rate, and infrastructure costs. According to the EPA, vessels that frequently call on the same ports and remain at berth for longer times may be the best applications for shore power.

How Widespread Is the Use of Shore Power?

At present, shore power service has already been installed in more than ten ports in North America and Europe, with more already in the works.

Local, state, national, and international standards, regulations, and laws have been passed to address these particular environmental concerns. For example:

  • The 200 nautical miles from the coasts of the U.S. and Canada, the North Sea, and the Baltic Sea, are known as the Emission Control Areas (ECA). Ships entering the ECA are required to burn fuel that meets the 2015 International Maritime Organization standard.
  • The California Air Resources Board (CARB) updated its regulations to require all cruise ships calling at California ports to use shore power, effective January 1, 2023.
  • The Port of San Diego recently announced a $4.6 million commitment to double shore power capability to allow two cruise vessels at port to connect to shore power outlets at the same time by 2022.
  • PortMiami has recently begun a pilot program to advance the development of shore power that will allow cruise ships in the port to start utilizing shore power solutions. The port was granted a $2 million allocation from the U.S. Environmental Protection Agency’s (EPA) Diesel Emissions Reduction Act to help fund the program.
  • Overseas, the EU is advancing regulations requiring most commercial ships to use shore power, with European ports expanding their ship to shore power systems capabilities to meet those requirements.

Doubtless, other laws and legislation will be passed in the near future.

The Future of Shore Power

Many organizations such as the IMO (the UN International Maritime Organization) and the EU are focusing on overall reductions of marine pollutions through various means. Progress has been made over the last 15 years despite the massive increase in world seaborne trade. However, there remains the multi-pronged problem of harmful emissions while these vessels must necessarily dock in port.

The best – and at the moment the only – player in town to directly address the problem of environmental pollutants from ships at berth is shore power. There are no feasible alternative solutions currently available or even on the horizon, so to comply with growing legislation both here in the U.S. and abroad, or to get ahead of them, shore power is the best solution for ever-increasing environmental concerns.

Because commercial technology hasn’t been around for very long, many companies don’t have the experience or expertise to make these conversions and provide the most advanced solid-state technology needed to get the best results.

Why You Need an Industry Leader for Your Shore Power Needs

FCX Systems has been installing frequency converters and diesel ground power (GPU) units on every continent and in more than 75 countries since 1987. FCX continues to refine and enhance the performance of converters and power systems for the commercial, military, and industrial sectors.

FCX is the world’s leading manufacturer of solid-state frequency converters that enables high-performance power units to convert any conventional electrical power to either 60 Hz or 50 Hz power at the dock.  We also provide ground power support equipment (GSE) and custom power conversion solutions. This means we work with all ships at facilities with shore power throughout the world. Your ship will be powered as if it were in its home port.

Our outstanding customer service includes onsite customer personnel training in operation, maintenance, and servicing, remote monitoring by computer interface systems, and backup FCX services centers worldwide.

Give us a call today at (304) 983-0402 or contact us online and let our experts help you choose the right ship to shore power system for your needs.



FCX designs and manufactures all aspects of large KVA Frequency Conversion Systems for Single and Multiple Frequency Applications as well as Single and Multiple Berth Configurations. Using the most advanced solid-state technology available, FCX produces all aspects of large KVA Frequency Conversion Systems to convert any conventional electrical power to either 60 Hz or 50 Hz power for dock/port applications. Each solid-state converter is configured in a vertical, stand alone NEMA 12 rated cabinet (Stainless steel, NEMA 4X, enclosures are available). These converters offer the most advanced solid-state technology, which enables these high performance power units to convert any conventional electrical power to either 60 Hz or 50 Hz power for your dock application. This allows service to all ships at facilities with shore power, regardless of electrical design of the ship. In today’s “service”-driven world, FCX is capable of providing the best in shore power for all ships worldwide. The FCX Shore Power compact solution dramatically reduces ship emissions as well as noise and vibration from ships in port . . . at a lower operating and maintenance cost than motor generator sets or running the ship’s motors.
  • Laminated bus design eliminates transient voltage surges for high performance and increased reliability
  • Insulated Gate Bipolar Transistor (IGBT) inverters controlled by drivers specifically designed to monitor the health and protect the transistors
  • Built-in failsafe modular system design ensures continuous operational dependability
  • Unique microprocessor controller guarantees long lasting performance under all conditions
60hz-50hz shore power up to 4000kva
  • INPUT POWER

    Input Voltage 208 to 600VAC three phase +/-10%, typical (other voltages are available)
    Input Phase Rotation Any (automatic phase lock)
    Inrush Current None (soft start to rated power)
    Input Frequency 45 to 65 Hz
    Protection Overload, short circuit, over voltage, under voltage, phase loss, over temperature, access door interlock
  • OUTPUT POWER

    Output Power 200 KVA to 4000 KVA
    Output Voltage 115V to 960V, 3 phase
    Output Frequency 50Hz and 60Hz
    Voltage Balance ± 1% for balanced loads, ± 2% for 25% unbalanced loads
    Harmonic Content 2% max., 1.5% typical (line to line or line to neutral)
    Overload Capacity 125% for 10 minutes (standard)
    Protection Overload, short circuit, over and under voltage, over temperature, isolation, and access door safety interlock
    Efficiency 85% above 75% load
    Output LDC 7% standard (higher compensations available)
  • ENVIRONMENTAL

    Enclosure NEMA 12 equivalent
    Ambient Temp. Range Operating: -40˚C to +55˚C (-40˚F to +131˚F)
    Humidity 10% to 100%
    Altitude 0 to 3,000 meters (10,000 ft.) without derating
    Wind Up to 145km/hr (90 mph)
    Operational Life 30 to 35 years
  • MONITORING AND CONTROLS

    Digital Monitor LED display
    Meters Elapsed time
  • Suitable For:

    Container Terminals and City Ports
    Cruise and Container Ships, Ro-Ro Vessels and LNG Carriers
    Single and Multiple Frequency Applications
    Single and Multiple Berth Configurations
    Dry Dock Applications
  • CODES AND STANDARDS

    MIL-STD-1399-300
    IEEE C62.41
    IEEE 519
    IEEE 1100
    IEEE 1159
  • OPTIONS AND ACCESSORIES

    NEMA 4X equivalent stainless steel enclosures
    12 pulse and 24 pulse input rectification systems
    Ethernet communications
    Distribution panels
    Distribution transformers (for providing higher voltages)
    Remote operators station(s)
    Fully automatic paralleling system
  • FCX INTERNATIONAL SERVICES

    One-year warranty included, options available for extended warranty plans
    Spare parts kit
    Backup FCX service centers worldwide
    Factory 24-hour service assistance
    In-house factory service engineers
    Factory engineers available onsite
    Remote monitoring by computer interface system
    Onsite customer personnel training in operation, maintenance and servicing

Contact Us





FCX INC. : U.S. Coast Guard 400 HZ Power Supply - Custom Enclosure

FCX INC. : U.S. Navy, NAS Oceana, VA 400 HZ Central System Converters

FCX INC. : U. S. Navy / 270 Volt DC Aircraft Power

FCX INC. : U. S. Navy , NAS, Patuxent River 400HZ Central System Converters

FCX INC. : Dallas / Fort Worth Airport Motor Generator Sets

FCX INC. : Edwards Airforce Base / F-22 Raptor 270 VDC Power Supply

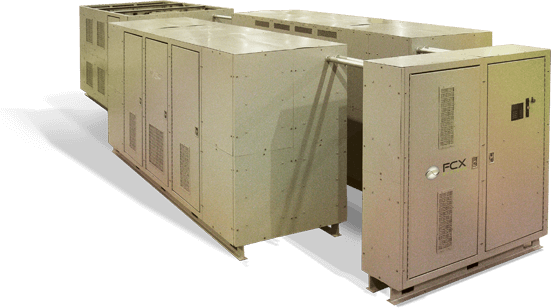

FCX INC. : Grand Bahamas Shipyard 50 HZ, 2,000 KVA Solid-State Frequency Converter
